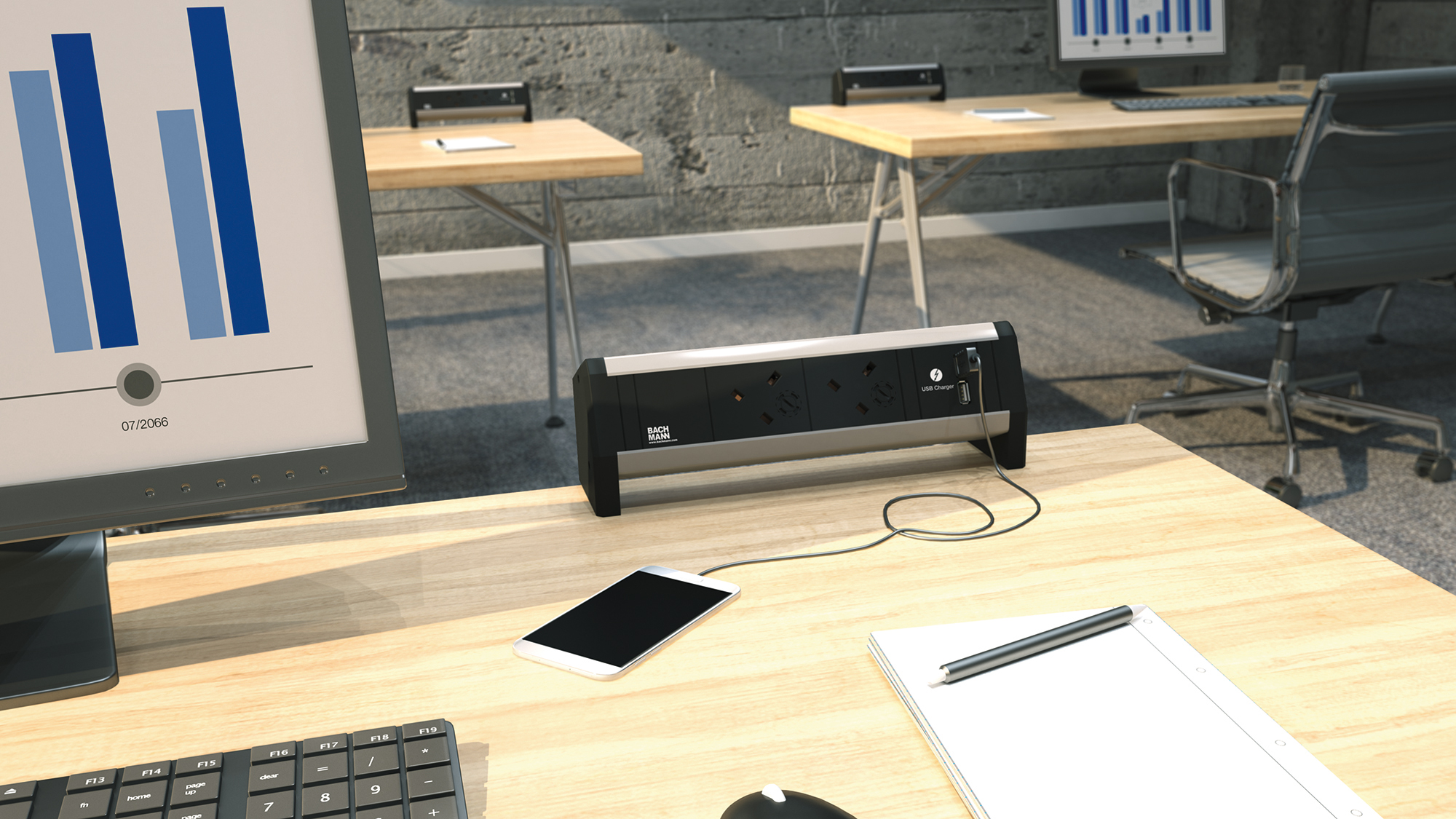

DESK 1

DESK 1

DESK 1

Versatility with style
  • Flexibility of use
  • Fixed or free-standing
  • Individually equipped

DESK is the ideal solution for data, media and power management wherever these connections need to be flexible. Typical situations might include meeting rooms, home offices or desk-sharing environments. The modular construction of DESK enables it to be factory-configured with exactly the communications and power connections required for specific applications. For the power supply, there is therefore a free choice of either the flexible Wieland connector system or permanent connections.

The data connections are fitted with adapters as standard, but can likewise also be fixed connections.

Technical data

Dimensions

from 189x 74x93 mm

Surface-mounted units

Wide range of mounting options. Accessories available for various mounting options.

Material

Aluminium profile: anodised Socket: plastic

Icon_Colour_Chrom_matt
Matt chrome
Socket outlet with earthing contact
UTE socket
Swiss socket (10 A)
UK socket (3,15 A)
Italy / socket outlet with earthing contact
Switch
USB Charger
Custom Module
Shutter

DESK 1

DESK 1 power strips – without cable

  • Anodised aluminium profile

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

Number of socket outlets with earthing contact
Number of other sockets
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert
With On/Off switch
USB charger
Custom Module
Dimensions

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

902.0307
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger A&C 22W
Custom Module
Dimensions 293 x 74 x 93 mm

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

902.0308
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch +
USB charger A&C 22W
Custom Module
Dimensions 345 x 74 x 93 mm

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

902.0309
Number of socket outlets with earthing contact
Number of other sockets 3
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger
Custom Module 1
Dimensions 296 x 74 x 93 mm

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

902.0310
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger A&C 22W
Custom Module 1
Dimensions 311 x 74 x 93 mm

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

902.0313
Number of socket outlets with earthing contact
Number of other sockets
Number of Swiss standard type 13/type 23 sockets 2 (T13)
Angle of twisted central insert 0°
With On/Off switch +
USB charger A&C 22W
Custom Module
Dimensions 306 x 74 x 93 mm

Plastic components white, similar to RAL9010 | Power input: GST18 | Power output: GST18

902.0312
Number of socket outlets with earthing contact
Number of other sockets
Number of Swiss standard type 13/type 23 sockets 2 (T13)
Angle of twisted central insert 0°
With On/Off switch -
USB charger A&C 22W
Custom Module
Dimensions 254 x 74 x 93 mm
Show more

Power input: GST18 | Power output: GST18

Power input: GST18 | Power output: GST18

Number of socket outlets with earthing contact
Number of other sockets
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert
With On/Off switch
USB charger
Custom Module
Dimensions

Power input: GST18 | Power output: GST18

902.024
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger
Custom Module 2
Dimensions 326 x 74 x 93 mm

Power input: GST18 | Power output: GST18

902.0184
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger A/A 15W
Custom Module 1
Dimensions 326 x 74 x 93 mm

Power input: GST18 | Power output: GST18

902.1017
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger
Custom Module 1
Dimensions 283 x 74 x 93 mm

Power input: GST18 | Power output: GST18

902.0853
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger C 60W
Custom Module
Dimensions 326 x 74 x 93 mm

Power input: GST18 | Power output: GST18

902.166
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger A/A 15W
Custom Module
Dimensions 283 x 74 x 93 mm

Power input: GST18 | Power output: GST18

339.1018
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger
Custom Module
Dimensions 231 x 74 x 93 mm
Show more

DESK 1 power strips – with cable

  • Anodised aluminium profile

Power input: 1.0 m with GST18

Power input: 1.0 m with GST18

Number of socket outlets with earthing contact
Number of other sockets
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert
With On/Off switch
USB charger
Custom Module
Dimensions

Power input: 1.0 m with GST18

902.0260
Number of socket outlets with earthing contact
Number of other sockets 2
Number of Swiss standard type 13/type 23 sockets
Angle of twisted central insert 45°
With On/Off switch -
USB charger A/A 15W
Custom Module 1
Dimensions 326 x 74 x 93 mm
Show more

Accessories

Chipboard screw for DESK end caps for tabletop thicknesses over 15 mm

Chipboard screw for DESK end caps for tabletop thicknesses over 15 mm

Feature list

Chipboard screw for DESK end caps for tabletop thicknesses over 15 mm

930.183
Feature list Contents: 2 x screws, 5 x 90 mm, 2 x brass threaded sleeves
Show more

Mounting bracket, long for tabletop thickness up to 80 mm

Mounting bracket, long for tabletop thickness up to 80 mm

Feature list

Mounting bracket, long for tabletop thickness up to 80 mm

930.180
Feature list Mounting bracket, long, 50–80 mm
Contents: 2 x mounting brackets, painted black, similar to RAL9011, 2 x M5 x 45 mm Allen bolts, 2 x M5 x 60 mm Allen bolts
Show more

Mounting bracket, narrow for tabletop thickness up to 50 mm

Mounting bracket, narrow for tabletop thickness up to 50 mm

Feature list

Mounting bracket, narrow for tabletop thickness up to 50 mm

918.001
Feature list Stainless steel, thickness 3 mm
Contents: 2 stainless steel mounting brackets, 2 M5 x 45 mm Allen bolts
Show more

Mounting plate

Mounting plate

Feature list

Mounting plate

930.182
Feature list Black plastic
Mounting plates for attachment to DESK end caps
Contents: 2 x mounting plates, 2 x screws, 2 x tesa Powerstrip®
Show more

Standard mounting brackets

Standard mounting brackets

Feature list

Standard mounting brackets

930.120
Feature list Anodised aluminium, material thickness approx. 9 mm
Contents: 2 x mounting brackets, anodised aluminium profile, 2 x Allen bolts M5 x 60 mm
With DESK 2/DESK 2 ALU BLACK suitable for tabletop thicknesses from 25 to 50 mm
With DESK 1 suitable for tabletop thicknesses up to 50 mm
Show more
