BN0500

BN0500

BN0500

Current and power metering via local display
  • Cost-effective, intelligent PDU
  • Clear display of measurement values
  • Illuminated display
  • Easy to use

Measurement per phase

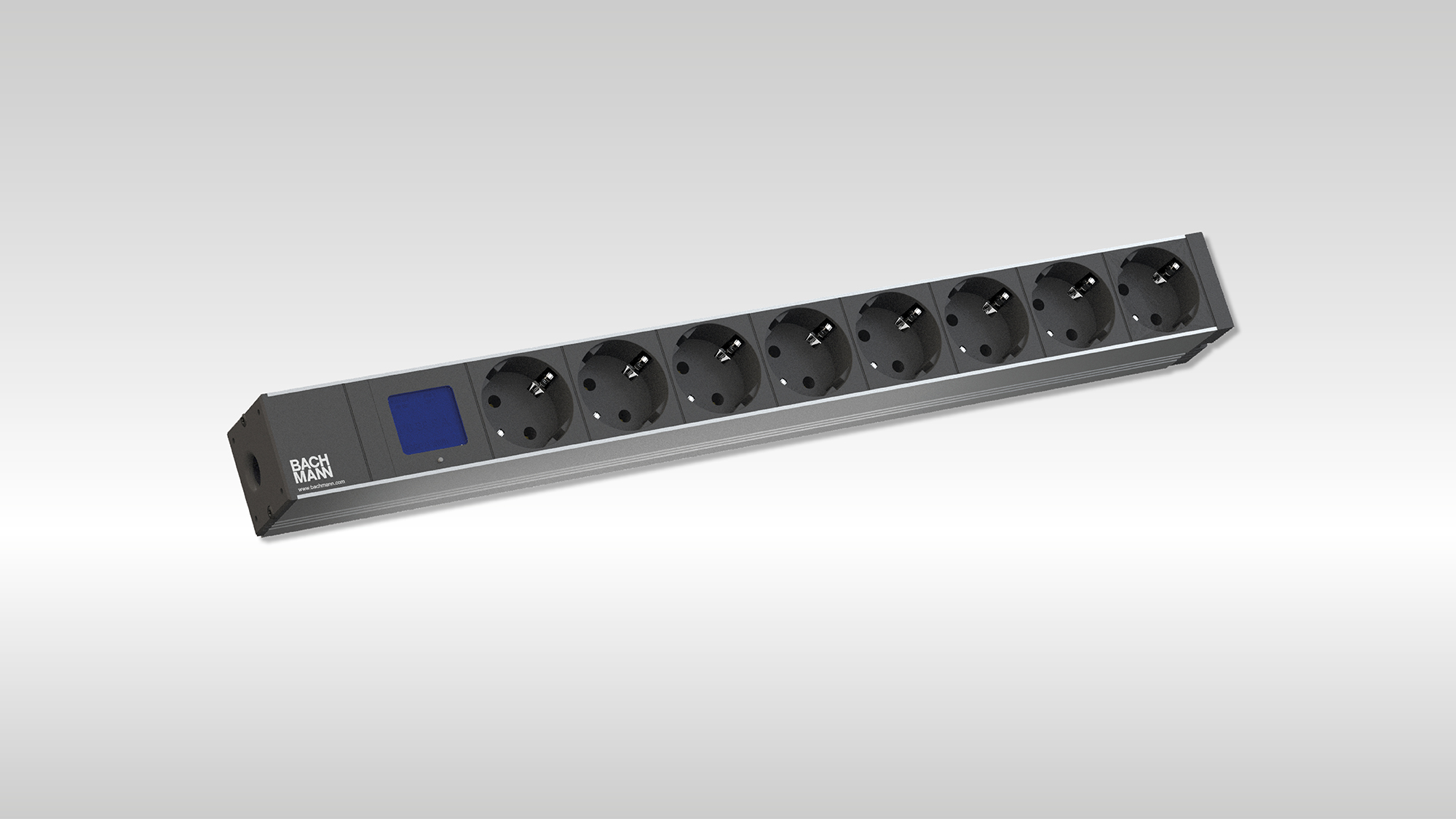

The BN0500 is an intelligent PDU (Power Distribution Unit). It is ideal as a cost-effective entry-level device for energy measurement at PDU level.

Thanks to its compact design (1U), installing the BN0500 is flexible and space-saving, and therefore enables optimised cabling and air flow in the server rack.

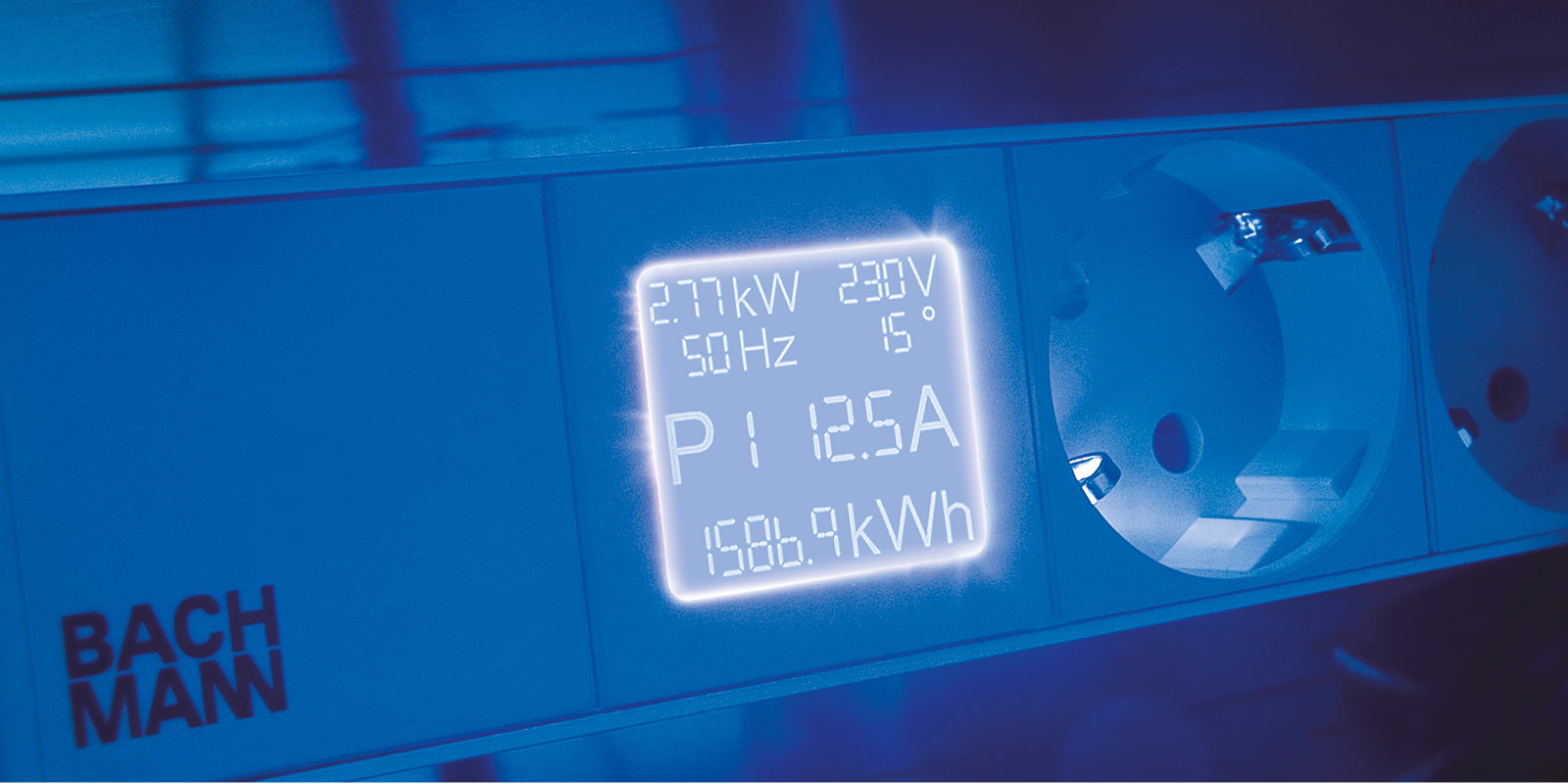

The following measurement values are shown on the backlit display:

Current [A]

Voltage [V]

Frequency [Hz]

Active power [kW]

Active energy [kWh], can be reset

Phase-shift angle [°]

The BN0500 is ideal for simpler applications in which a local measurement value display is sufficient for monitoring the power requirement and capacity utilisation whenever necessary.

Optional technology modules:

Surge Protection Device (SPD), housing colour

This PDU is available as a 19" version or for vertical installation.

Further product configurations available on request.

BN0500

19" BN0500 (230 V / 50 Hz) | Incl. mounting brackets

16 A / 230 V

16 A / 230 V

Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin
Number of Swiss standard type 13/type 23 sockets
Number of C13 sockets
Number of C19 sockets

Outlets Gesamt

Stecker

Thermo- / Feinsicherung (A)

Kabeltyp

Maße

16 A / 230 V

800.2054
Number of socket outlets with earthing contact 8
Number of other sockets
Number of sockets with earth pin 0
Number of Swiss standard type 13/type 23 sockets
Number of C13 sockets
Number of C19 sockets

16 A / 230 V

0

16 A / 230 V

CEE 7/7

16 A / 230 V

16 A / 230 V

H05VV-F 3G 1,50 mm²

16 A / 230 V

440 x 44 x 47 mm

16 A / 230 V

800.2067
Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin 8
Number of Swiss standard type 13/type 23 sockets
Number of C13 sockets
Number of C19 sockets

16 A / 230 V

0

16 A / 230 V

CEE 7/7

16 A / 230 V

16 A / 230 V

H05VV-F 3G 1,50 mm²

16 A / 230 V

440 x 44 x 47 mm

16 A / 230 V

800.2063
Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin 0
Number of Swiss standard type 13/type 23 sockets 7 (T13)
Number of C13 sockets
Number of C19 sockets

16 A / 230 V

0

16 A / 230 V

T23

16 A / 230 V

10 A

16 A / 230 V

H05VV-F 3G 1,50 mm²

16 A / 230 V

440 x 44 x 47 mm

16 A / 230 V

800.2055
Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin 0
Number of Swiss standard type 13/type 23 sockets
Number of C13 sockets 12
Number of C19 sockets

16 A / 230 V

0

16 A / 230 V

CEE 7/7

16 A / 230 V

16 A / 230 V

H05VV-F 3G 1,50 mm²

16 A / 230 V

440 x 44 x 47 mm

16 A / 230 V

800.2154
Number of socket outlets with earthing contact
Number of other sockets
Number of sockets with earth pin 0
Number of Swiss standard type 13/type 23 sockets
Number of C13 sockets
Number of C19 sockets 8

16 A / 230 V

0

16 A / 230 V

CEE 7/7

16 A / 230 V

16 A / 230 V

H05VV-F 3G 1,50 mm²

16 A / 230 V

440 x 44 x 47 mm
Show more

BN0500 (230-400 V / 50 Hz) | Incl. mounting brackets

16 A / 230 V

16 A / 230 V

Number of socket outlets with earthing contact
Number of C13 sockets
Number of C19 sockets

Outlets Gesamt

Stecker

Kabeltyp

Leitungsschutzschalter

Maße

16 A / 230 V

800.2395
Number of socket outlets with earthing contact
Number of C13 sockets 16
Number of C19 sockets 4

16 A / 230 V

0

16 A / 230 V

CEE 16A

16 A / 230 V

H05VV-F 3G 1,50 mm²

16 A / 230 V

16 A / 230 V

746 x 44 x 47 mm

16 A / 230 V

800.2135
Number of socket outlets with earthing contact
Number of C13 sockets 24
Number of C19 sockets 4

16 A / 230 V

0

16 A / 230 V

CEE 16A

16 A / 230 V

H05VV-F 3G 2,50 mm²

16 A / 230 V

16 A / 230 V

958 x 44 x 47 mm

16 A / 230 V

800.2396
Number of socket outlets with earthing contact 4
Number of C13 sockets 16
Number of C19 sockets

16 A / 230 V

0

16 A / 230 V

CEE 16A

16 A / 230 V

H05VV-F 3G 1,50 mm²

16 A / 230 V

16 A / 230 V

746 x 44 x 47 mm
Show more

16 A / 400 V

16 A / 400 V

Number of socket outlets with earthing contact
Number of C13 sockets
Number of C19 sockets

Outlets Gesamt

Stecker

Kabeltyp

Leitungsschutzschalter

Maße

16 A / 400 V

800.2398
Number of socket outlets with earthing contact
Number of C13 sockets 18
Number of C19 sockets 3

16 A / 400 V

0

16 A / 400 V

CEE 16A

16 A / 400 V

H05VV-F 5G 2,50 mm²

16 A / 400 V

16 A / 400 V

978 x 44 x 47 mm

16 A / 400 V

800.2400
Number of socket outlets with earthing contact
Number of C13 sockets 24
Number of C19 sockets 6

16 A / 400 V

0

16 A / 400 V

CEE 16A

16 A / 400 V

H05VV-F 5G 2,50 mm²

16 A / 400 V

16 A / 400 V

1360 x 44 x 47 mm

16 A / 400 V

800.2403
Number of socket outlets with earthing contact
Number of C13 sockets 36
Number of C19 sockets 6

16 A / 400 V

0

16 A / 400 V

CEE 16A

16 A / 400 V

H05VV-F 5G 2,50 mm²

16 A / 400 V

16 A / 400 V

1616 x 44 x 47 mm

16 A / 400 V

800.2399
Number of socket outlets with earthing contact 3
Number of C13 sockets 18
Number of C19 sockets

16 A / 400 V

0

16 A / 400 V

CEE 16A

16 A / 400 V

H05VV-F 5G 2,50 mm²

16 A / 400 V

16 A / 400 V

978 x 44 x 47 mm

16 A / 400 V

800.2401
Number of socket outlets with earthing contact 6
Number of C13 sockets 24
Number of C19 sockets

16 A / 400 V

0

16 A / 400 V

CEE 16A

16 A / 400 V

H05VV-F 5G 2,50 mm²

16 A / 400 V

16 A / 400 V

1360 x 44 x 47 mm

16 A / 400 V

800.2402
Number of socket outlets with earthing contact 6
Number of C13 sockets 24
Number of C19 sockets 6

16 A / 400 V

0

16 A / 400 V

CEE 16A

16 A / 400 V

H05VV-F 5G 2,50 mm²

16 A / 400 V

16 A / 400 V

1787 x 44 x 47 mm
Show more

32 A / 230 V

32 A / 230 V

Number of socket outlets with earthing contact
Number of C13 sockets
Number of C19 sockets

Outlets Gesamt

Stecker

Kabeltyp

Leitungsschutzschalter

Maße

32 A / 230 V

800.2405
Number of socket outlets with earthing contact
Number of C13 sockets 16
Number of C19 sockets 4

32 A / 230 V

0

32 A / 230 V

CEE 32A

32 A / 230 V

H05VV-F 3G 4,00 mm²

32 A / 230 V

2 x C16A

32 A / 230 V

916 x 44 x 47 mm

32 A / 230 V

800.2407
Number of socket outlets with earthing contact
Number of C13 sockets 24
Number of C19 sockets 4

32 A / 230 V

0

32 A / 230 V

CEE 32A

32 A / 230 V

H05VV-F 3G 4,00 mm²

32 A / 230 V

2 x C16A

32 A / 230 V

1086 x 44 x 47 mm
Show more

32 A / 400 V

32 A / 400 V

Number of socket outlets with earthing contact
Number of C13 sockets
Number of C19 sockets

Outlets Gesamt

Stecker

Kabeltyp

Leitungsschutzschalter

Maße

32 A / 400 V

800.2409
Number of socket outlets with earthing contact 6
Number of C13 sockets 24
Number of C19 sockets

32 A / 400 V

0

32 A / 400 V

CEE 32A

32 A / 400 V

H05VV-F 5G 4,00 mm²

32 A / 400 V

6 x C16A

32 A / 400 V

1787 x 44 x 47 mm

32 A / 400 V

800.2408
Number of socket outlets with earthing contact
Number of C13 sockets 24
Number of C19 sockets 6

32 A / 400 V

0

32 A / 400 V

CEE 32A

32 A / 400 V

H05VV-F 5G 4,00 mm²

32 A / 400 V

6 x C16A

32 A / 400 V

1787 x 44 x 47 mm

32 A / 400 V

800.2410
Number of socket outlets with earthing contact
Number of C13 sockets 36
Number of C19 sockets 6

32 A / 400 V

0

32 A / 400 V

CEE 32A

32 A / 400 V

H05VV-F 5G 4,00 mm²

32 A / 400 V

6 x C16A

32 A / 400 V

2042 x 44 x 47 mm
Show more
