CRAFTSMAN SOCKET OUTLET

CRAFTSMAN SOCKET OUTLET

CRAFTSMAN SOCKET OUTLET

Ideal for easily positioning power adapters and operating equipment.
  • Robust plastic profile
  • Distance between socket inserts
  • Additional earth conductor connection possible
  • Simple mounting in data racks

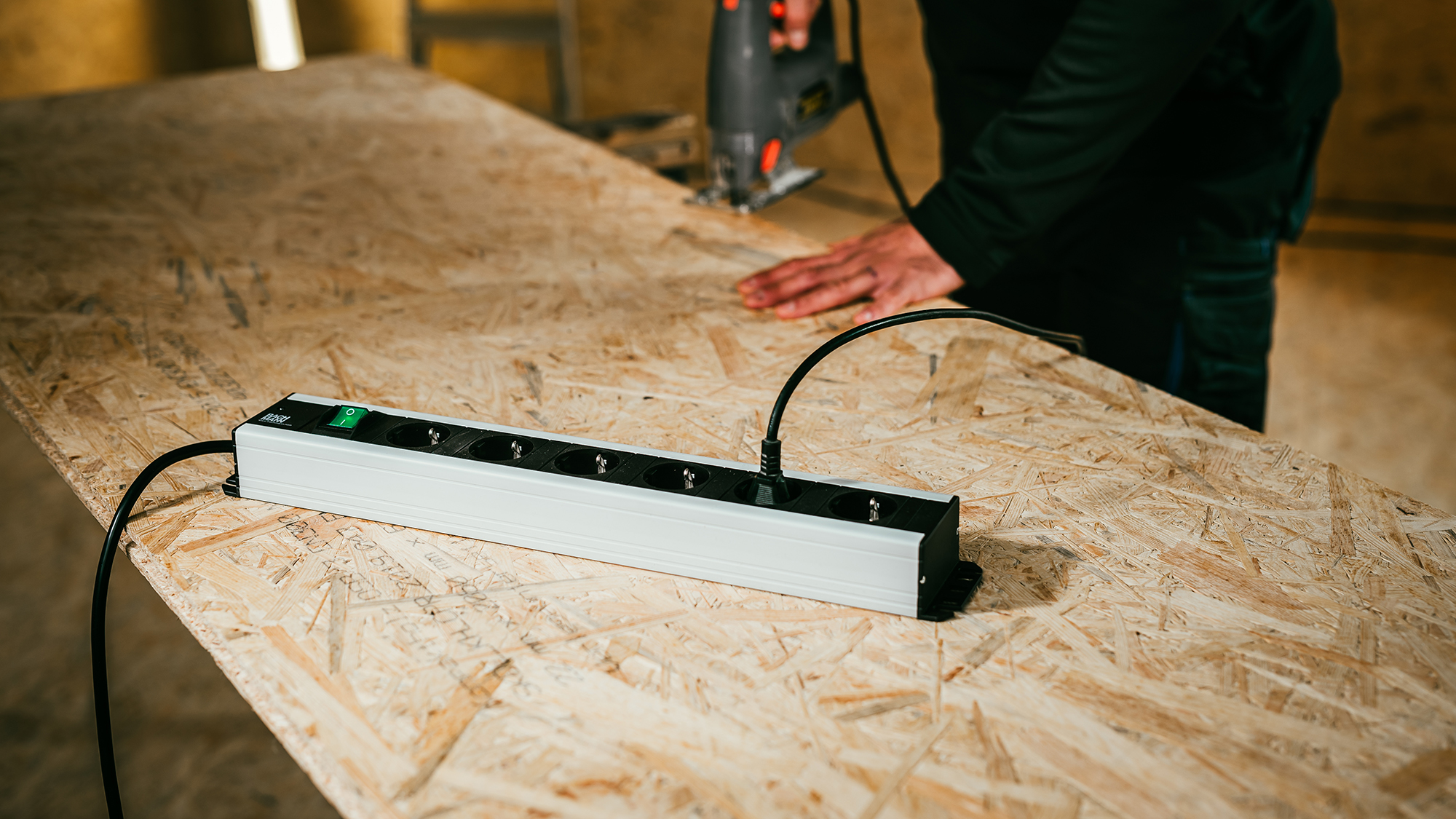

Practical: The socket outlets with earthing contacts are rotated by 90°. The intervening distance make it possible to insert larger plugs. A reliable helper and can be used wherever work is being done: the BACHMANN CRAFTSMAN SOCKET OUTLET. A socket strip characterised by its classic, robust plastic profile and a straight, practical shape. At the same time, you can choose from a variety of different product versions: for example, the CRAFTSMAN SOCKET OUTLET is available with an optional 15 mm distance between the socket inserts. This allows power supplies and operating devices to be positioned without any problems. A version in 19” dimensions with additional screw holes for mounting in data racks is also available. The practical socket strip is even more flexible thanks to the additional earth conductor connection, which is easy to install without opening the housing. Put simply: a strip for all applications!

Technical data

Socket orientation

35/90°

Profile

plastic

Dimensions

from 445x74x45 mm

Icon_Colour_Edelstahl-Optik
Stainless steel look
Steckdosenleiste
Schalter
19-Zoll-Rack-kompatibel
Überspannungsschutz
Netz-und-Frequenzfilter
USB Charger

CRAFTSMAN SOCKET OUTLET

CRAFTSMAN SOCKET OUTLET with standard spacing between the sockets

  • Supply cable: 2.0 m with right-angled plug with earthing contact
  • Plastic profile: grey

Number of socket outlets with earthing contact
Angle of twisted central insert
With On/Off switch
Surge protection
Mains noise filter
USB charger
Compatible with 19” racks
Dimensions
Number of socket outlets with earthing contact 7
Angle of twisted central insert 35°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks +
Dimensions 445 x 74 x 45 mm
Number of socket outlets with earthing contact 8
Angle of twisted central insert 35°
With On/Off switch -
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks +
Dimensions 445 x 74 x 45 mm
Show more

CRAFTSMAN SOCKET OUTLET with 15 mm spacing between sockets

  • Supply cable: 2.0 m with right-angled plug with earthing contact
  • Plastic profile: grey

Number of socket outlets with earthing contact
Angle of twisted central insert
With On/Off switch
Surge protection
Mains noise filter
USB charger
Compatible with 19” racks
Dimensions
Number of socket outlets with earthing contact 12
Angle of twisted central insert 90°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 792 x 74 x 45 mm
Number of socket outlets with earthing contact 12
Angle of twisted central insert 90°
With On/Off switch -
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 792 x 74 x 45 mm
Number of socket outlets with earthing contact 9
Angle of twisted central insert 90°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 619 x 74 x 45 mm
Number of socket outlets with earthing contact 9
Angle of twisted central insert 90°
With On/Off switch -
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 619 x 74 x 45 mm
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch +
Surge protection +
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 514 x 74 x 45 mm
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch +
Surge protection +
Mains noise filter +
USB charger
Compatible with 19” racks -
Dimensions 575 x 74 x 45 mm
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks +
Dimensions 445 x 74 x 45 mm
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch -
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks +
Dimensions 445 x 74 x 45 mm
Number of socket outlets with earthing contact 5
Angle of twisted central insert 90°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger A/A 15W
Compatible with 19” racks +
Dimensions 445 x 74 x 45 mm
Show more

Can be switched off individually

Can be switched off individually

Number of socket outlets with earthing contact
Angle of twisted central insert
With On/Off switch
Surge protection
Mains noise filter
USB charger
Compatible with 19” racks
Dimensions

Can be switched off individually

300.050
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 534 x 74 x 45 mm

Can be switched off individually

300.049
Number of socket outlets with earthing contact 4
Angle of twisted central insert 90°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 462 x 74 x 45 mm
Show more

Supply cable and switch on opposite sides

Supply cable and switch on opposite sides

Number of socket outlets with earthing contact
Angle of twisted central insert
With On/Off switch
Surge protection
Mains noise filter
USB charger
Compatible with 19” racks
Dimensions

Supply cable and switch on opposite sides

300.008
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch +
Surge protection -
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 488 x 74 x 45 mm
Show more

CRAFTSMAN SOCKET OUTLET with PLUS components series

  • Supply cable: 2.0 m with right-angled plug with earthing contact
  • Plastic profile: grey

Number of socket outlets with earthing contact
Angle of twisted central insert
With On/Off switch
Surge protection
Mains noise filter
USB charger
Compatible with 19” racks
Dimensions
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch +
Surge protection +
Mains noise filter +
USB charger
Compatible with 19” racks -
Dimensions 575 x 74 x 45 mm
Number of socket outlets with earthing contact 6
Angle of twisted central insert 90°
With On/Off switch +
Surge protection +
Mains noise filter -
USB charger
Compatible with 19” racks -
Dimensions 490 x 74 x 45 mm
Show more
